Request For Our Latest Prices On Stainless Steel 316h Washers in Istanbul, Turkey!

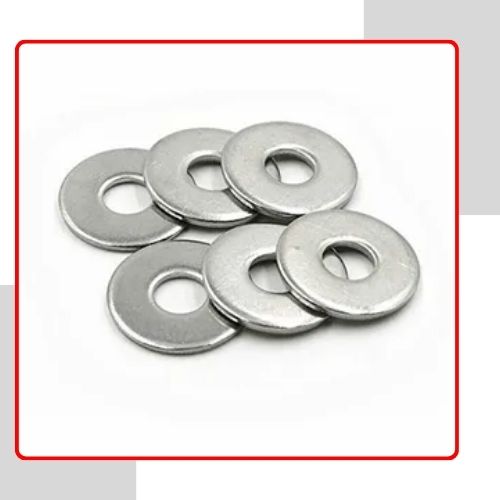

Yasin Fasteners, Istanbul, Turkey, is a reliable producer and exporter of stainless steel 316H washers with superior resistance to corrosion and high temperature strength. The washers are produced using an austenitic stainless steel alloy containing more carbon than the typical 316, making them have improved mechanical properties as well as creep resistance at high temperature conditions. Yasin Fasteners provides stainless steel 316H washers of different sizes and specifications to industries like power generation, chemical processing, petrochemical, and food processing. All items are produced according to international quality standards for durability and consistent performance.
Stainless steel 316H washers have around 16–18% chromium, 10–14% nickel, and 2–3% molybdenum, with more carbon content (around 0.04–0.10%) than typical 316. The increased carbon content enhances tensile strength and creep resistance at temperatures as high as 800°C (1472°F) while showing good resistance to pitting and crevice corrosion in chloride environments. Good toughness and thermal stability in hard service are also provided by the alloy.
|
Material |
Specification |
Standards |
Size
|
Length |
|
Stainless Steel 316 / 316H / 316L / 316Ti Washers
|
IS
BS
ASTM
|
ASTM / ASME – A/ SA 193 / 193 |
3 mm
to
200 mm
|
M02 to M33
|
Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N | ||
316 | Min | – | – | – | 0 | – | 16.0 | 2.00 | 10.0 | – | |
Max | 0.08 | 2.0 | 0.75 | 0.045 | 0.03 | 18.0 | 3.00 | 14.0 | 0.10 | ||
316L | Min | – | – | – | – | – | 16.0 | 2.00 | 10.0 | – | |
Max | 0.03 | 2.0 | 0.75 | 0.045 | 0.03 | 18.0 | 3.00 | 14.0 | 0.10 | ||
316H | Min | 0.04 | 0.04 | 0 | – | – | 16.0 | 2.00 | 10.0 | – | |
max | 0.10 | 0.10 | 0.75 | 0.045 | 0.03 | 18.0 | 3.00 | 14.0 | – | ||
| Grade | Tensile Str (MPa) min | Yield Str 0.2% Proof (MPa) min | Elong (% in 50mm) min | Hardness | |
| Rockwell B (HR B) max | Brinell (HB) max | ||||
| 316 | 515 | 205 | 40 | 95 | 217 |
| 316L | 485 | 170 | 40 | 95 | 217 |
| 316H | 515 | 205 | 40 | 95 | 217 |
To satisfy our clients needs by providing high quality products at competitive price as per the schedule and to maintain long term relationship with our clients.
316H stainless steel washers are normally specified for service in high-temperature boilers, heat exchangers, pressure vessels, and chemical processing equipment. Due to their thermal stress resistance and corrosion resistance, they are perfectly suited for fastening securement in severe industrial settings. The washers provide uniform load distribution and reliable performance in severe high-temperature applications.
We ensure that our Stainless Steel 316H washers are installed with the utmost care to preserve their quality and performance at Yasin Fasteners. We use sustainable packaging materials and safe methods to protect washers from damage in transit. Each item is carefully detailed to facilitate identification and inventory management. Whether a small order or a large shipment, our comprehensive packaging system guarantees that your Stainless Steel 316H washers arrive in perfect condition and ready for use. They are tough.
Yasin Fasteners is a leading manufacturer and supplier of high-quality fasteners in Istanbul, Turkey, with over 8 years of experience serving global industries.
