Request For Our Latest Prices On Hastelloy Stud Bolts in Istanbul, Turkey!

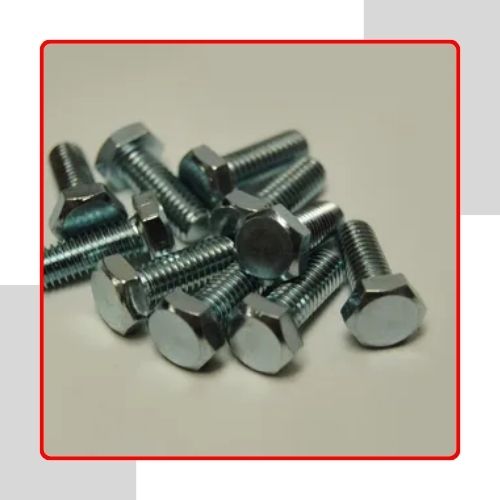

Hastelloy stud bolts are available at Yasin Fasteners which is well known for its quality products that can perform well in harsh conditions. These stud bolts are manufactured from Hastelloy alloys which are basically nickel-molybdenum based and are well known for their high tensile strength and corrosion resistance. Designed for chemical processing, aerospace, high temperature industries, our Hastelloy stud bolts provide consistent and sound fastening in extreme conditions.
Yasin Fasteners, based in Istanbul, Turkey, has earned a solid reputation as a reliable manufacturer and supplier of Hastelloy Stud Bolts. They provide top-notch fastening solutions for industries that require exceptional corrosion resistance, strength, and durability. Crafted with precision and in line with international standards, these stud bolts are built to perform consistently in harsh and corrosive environments. Hastelloy Stud Bolts are perfect for sectors like chemical, petrochemical, marine, and power generation, ensuring they deliver long-lasting performance and maintain structural integrity even under extreme conditions.
| Specifications | ASTM B574 / ASME SB574 |
|---|---|
| Fasteners size | Bolt / Screw Size : M3 – M56 | 3/6″ to 2″ | Custom Sizes Nuts Size : M3 – M56 | 3/6″ to 2″ | Custom Sizes Washers Size : M3 – M56 | 3/6″ to 2″ | Custom Sizes Machine Screws Size : M1.6 – M12 Self Tapping Screw Size : No.2 – No. 14 |
| Fasteners Length | 3 mm to 200 mm |
| Fastener Threads | UNF, BSW, BSF, METRIC, UNC or as required |
| Standard of High Nickel Alloy Fasteners | DIN : DIN 934, DIN 931, DIN 970, DIN 933 UTS : UNEF, NPT, UNC, UNS, UNF, NPTF ISO : JIS standards, ISO 4033, ISO 4032, ANSI – American National Standards Institute ASME B18.5 ANSI B 28.2.4 1M as per defined in ASME B16.5 standard Stud Bolt length ANSI B 18.2.4 2M as per defined in ASME B18.2.2 Hex nuts |
| Dimensions | DIN 931, 933, 934, 7991, 976, 125, ASME B18.2.1, B18.3 |
| Surface Coating | Ptfe Coated High Nickel Alloy Fasteners Phosphate Coating Teflon Coating Zinc Coating Hot Dipped Galvanizing Coating Cadmium Coating Xylon Coating |
| Fasteners Finishing | High Nickel Alloy : Self-Colour, Passivated, Bright Zinc Plated (BZP), Hot Dip Galvanised (HDG), High Nickel Alloy, Sherardized, some special one like DACROMET Geometry and Mechanically Applied coating ,Dacroment, nickel plated, anodizing, plated zinc-nickel Zinc (blue, black, yellow, white), black oxide. |
| Grade | C | Mn | Si | Co | S | Ni | Cr | Fe | Mo | W | V | P |
| Hastelloy Fasteners | 0.010 max | 1.0 max | 0.08 max | 2.5 max | 0.03 max | Bal | 14.5 – 16.5 | 4 – 7 | 15 – 17 | 3 – 4.5 | 0.35 max | 0.04 max |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Hastelloy Fasteners | 8.89 g/cm3 | 1370 °C (2500 °F) | Psi – 1,15,000 , MPa – 790 | Psi – 52,000 , MPa – 355 | 40 % |
To satisfy our clients needs by providing high quality products at competitive price as per the schedule and to maintain long term relationship with our clients.
These stud bolts are mainly made from nickel, molybdenum, and chromium, with some tungsten, iron, and cobalt added in. This sophisticated blend gives them remarkable resistance to both oxidizing and reducing agents, as well as protection against localized corrosion like pitting and crevice attack. On the mechanical side, they boast excellent tensile and yield strength, toughness, and resistance to stress corrosion cracking, all while maintaining stability in fluctuating temperatures and high pressures. Their unique combination of chemical and mechanical properties makes them ideal for critical industrial applications.
Hastelloy Stud Bolts find their place in industries that face highly corrosive and high-temperature conditions. In chemical processing, they are used in reactors, piping systems, and heat exchangers that handle aggressive fluids. Petrochemical plants rely on them for pumps, valves, and scrubbers that endure harsh chemical exposure. In marine applications, they are essential for shipbuilding, offshore platforms, and seawater handling equipment. Power generation facilities depend on them in turbines, boilers, and flue gas scrubbers. Their durability and ability to withstand severe operating conditions make Hastelloy Stud Bolts a must-have for critical engineering and industrial applications.
