Request For Our Latest Prices on Copper Nickel 90/10 Stud Bolts in Istanbul, Turkey!

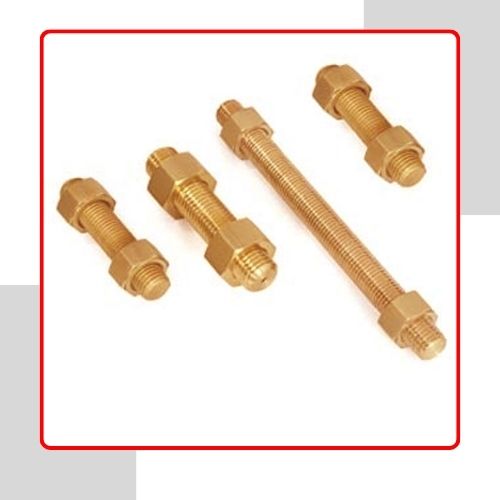

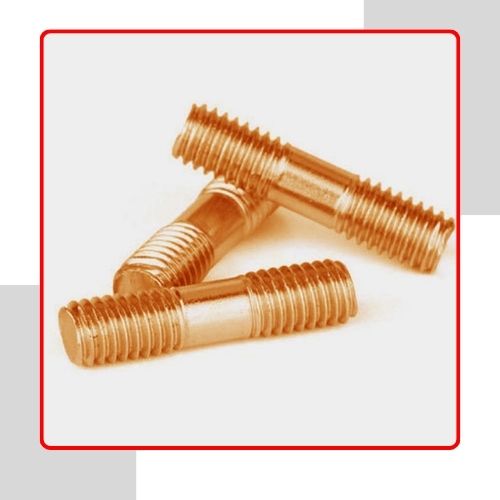

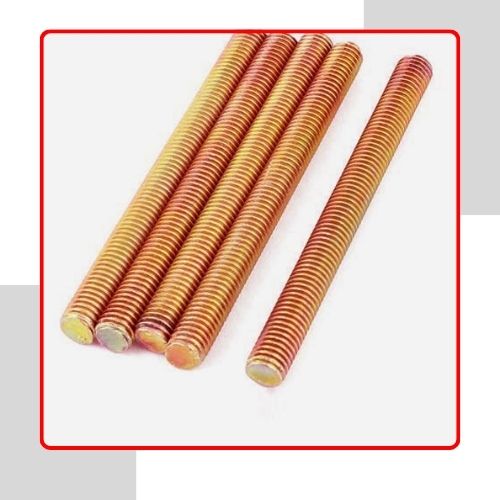

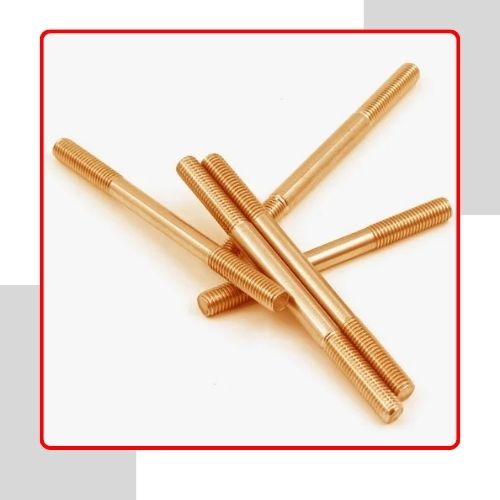

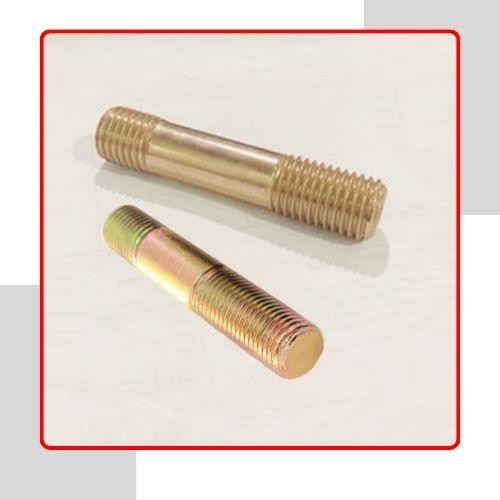

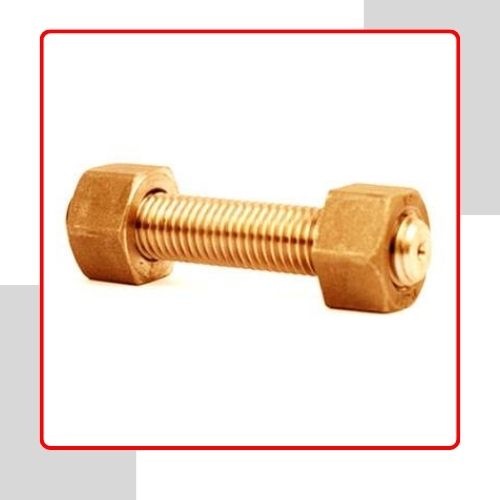

Copper Nickel 90/10 stud bolts supplied by Yasin Fasteners are of premium quality and are suitable for use in marine and other extreme industrial applications. These stud bolts are made of copper-nickel alloy, 90% copper and 10% nickel, which provides high corrosion resistance especially in marine environment and other harsh environments. Used in marine engineering, desalination plants, and chemical processing, our Copper Nickel 90/10 stud bolts are designed to provide the best connection. When it comes to stud bolts, Yasin Fasteners is the right choice for those who need high quality and long-lasting products for their work.
Yasin Fasteners, based in Istanbul, Turkey, stands out as a top manufacturer and supplier of Copper Nickel 90/10 Stud Bolts. Known for their commitment to precision engineering and rigorous quality control, this company caters to a variety of industries, including marine, offshore, chemical processing, oil and gas, and power generation. By leveraging advanced manufacturing techniques and high-quality materials, Yasin Fasteners guarantees that every stud bolt adheres to international standards for strength, corrosion resistance, and durability. Their Copper Nickel 90/10 Stud Bolts offer reliable and long-lasting fastening solutions for critical applications, making Yasin Fasteners a go-to partner for businesses in need of high-performance hardware that can endure tough industrial conditions.
| Grade | Cu | Mn | Pb | Ni | Fe | Zn |
| Cupro Nickel 90/10 | 88.6 min | 1.0 max | 0.05 max | 9-11 max | 1.8 max | 1 max |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Cupro Nickel 90/10 | 0.323 lb/in3 at 68 F | 2260 F | 50000 psi | 20000 psi | 30 % |
| Specifications | ASTM B151 / ASME SB151 |
| Standard | DIN, ISO ,JIS ,GB, IS, BS, ASTM and all International Standards |
| Size | M3 – M100 | 3/6″ – 4″ | Custom Sizes |
| Length | 3 mm – 200 mm | Custom Sizes |
| Dimensions | DIN 931, 933, 934, 7991, 976, 125, ASME B18.2.1, B18.3 |
| Threads available | UNF, BSW, BSF, METRIC, UNC, or as required |
| Threads Configuration | ASME B1.1 2A/3A – 2B/3B Inch Unified Threads and B1.13M 6h-6G Metric Coarse Threads |
| Form | Hex, Threading, Square, Round as per Gauge Etc. |
| Head | Hex, Square, Round, Hex flange, Flat, T-head & Triangular etc. |
| Neck type | Hex, Square, Triangular, Oval & Knurled etc. |
| Surface Treatment | Passivation /plain |
| Others Factor | OEM, ODM, ±0.03MM tolerance |
| Manufacturing Process | Wire Drawing, Cold Heading, Insert tapping, Heat Treatment, Surface Plating, Inspection, Packing. |
| Packing | IN BULK: carton, pallet, Small Boxes or customer request |
| Surface Coating | Black Oxide, Cadmium, Galvanized, Teflon, Xylan, Zinc, Others Upon Request |
| Test Certificate | As per EN 10204 / 3.1 Manufacturer Test Certificate, PED 97/23/EC Certified, Merk blatt AD 2000 W2 Certified |
| Certification | Dual Certified As per ASTM & ASME Codes |
To satisfy our clients needs by providing high quality products at competitive price as per the schedule and to maintain long term relationship with our clients.
The Copper Nickel 90/10 Stud Bolts from Yasin Fasteners are crafted from a premium copper-nickel alloy, consisting of 90% copper and 10% nickel, which provides outstanding corrosion resistance, impressive tensile strength, and long-lasting durability. These stud bolts showcase exceptional mechanical properties, including resistance to wear, fatigue, and deformation under heavy loads. Thanks to precise machining and stringent quality control measures, they ensure dimensional accuracy and consistent performance. The carefully engineered composition allows these Copper Nickel 90/10 Stud Bolts to function reliably in harsh marine, industrial, and chemical settings, delivering a long service life and secure fastening for essential structural and mechanical applications.
Copper Nickel 90/10 Stud Bolts are extensively utilized in industries where corrosion resistance, strength, and reliability are paramount. They find common use in marine assemblies, offshore platforms, desalination plants, chemical processing equipment, oil and gas pipelines, and high-pressure mechanical joints. These stud bolts are perfectly suited for high-stress, high-temperature, and corrosive environments, providing secure and stable fastening even in demanding operational conditions. Their exceptional mechanical strength, durability, and wear resistance ensure a long-lasting performance.
